Details

---

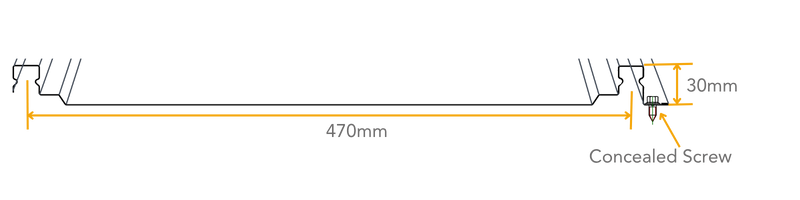

Engineered for precision and performance, Quad30™ redefines modern roofing with its minimalist yet powerful design. Featuring two upright ribs standing 30mm tall, this system incorporates OSM’s innovative Grip-and-Lock technology — a concealed fastener mechanism that ensures a clean architectural finish and superior watertightness.

The interlocking profile not only enhances aesthetic appeal but also provides outstanding structural integrity, resisting uplift and leakage even under harsh weather conditions. With its seamless joints and robust engineering, Quad30™ achieves optimal strength while maintaining a sleek, uninterrupted surface.

Designed for low-slope applications, Quad30™ performs flawlessly on roof pitches as low as 5°, making it ideal for contemporary residential and commercial projects that demand both form and function.

From design studios to large-scale developments, Quad30™ embodies OSM’s commitment to innovation — delivering a roof that’s stronger, smarter, and strikingly refined.


• Innovative: Seamless & Reliable Waterproofing
• Enhanced Security Design: Superior Resistance
• Versatile Performance: High Ribs Enable Roof pitches as low as 3º

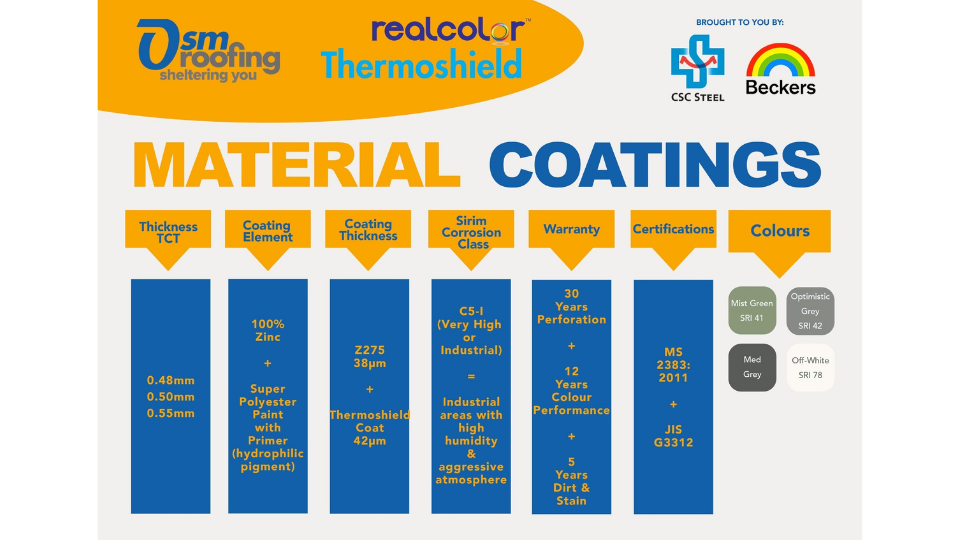

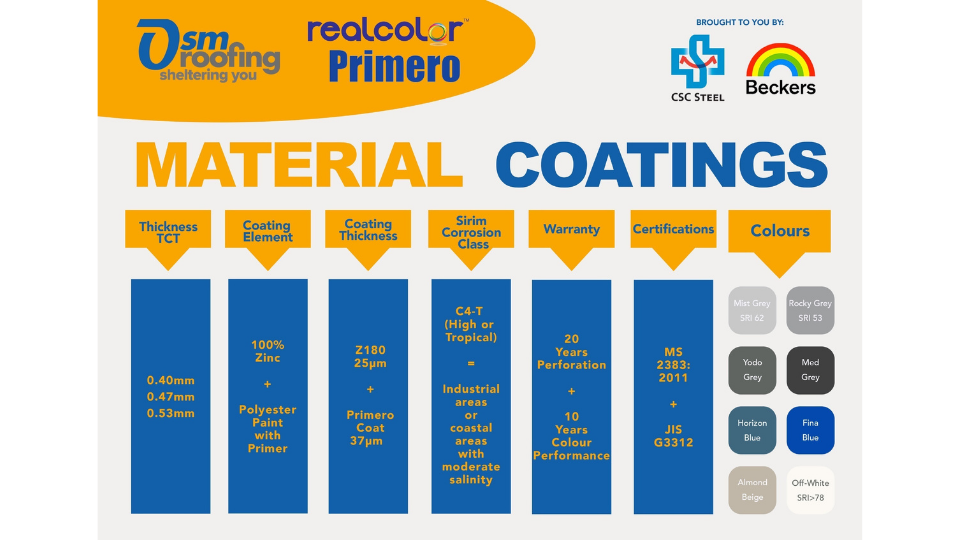

Materials available in

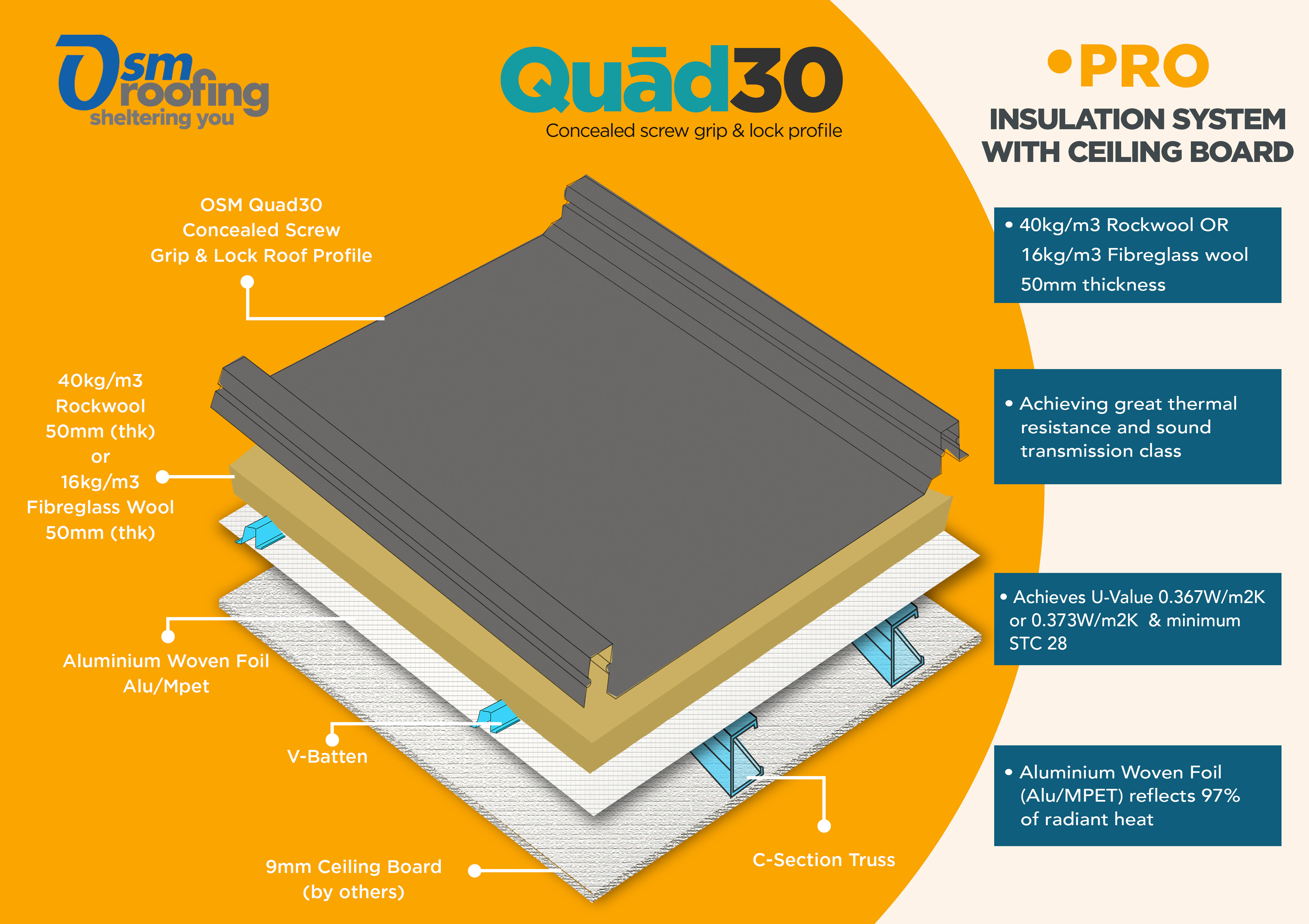

Insulation Package
